NAR plus series

products

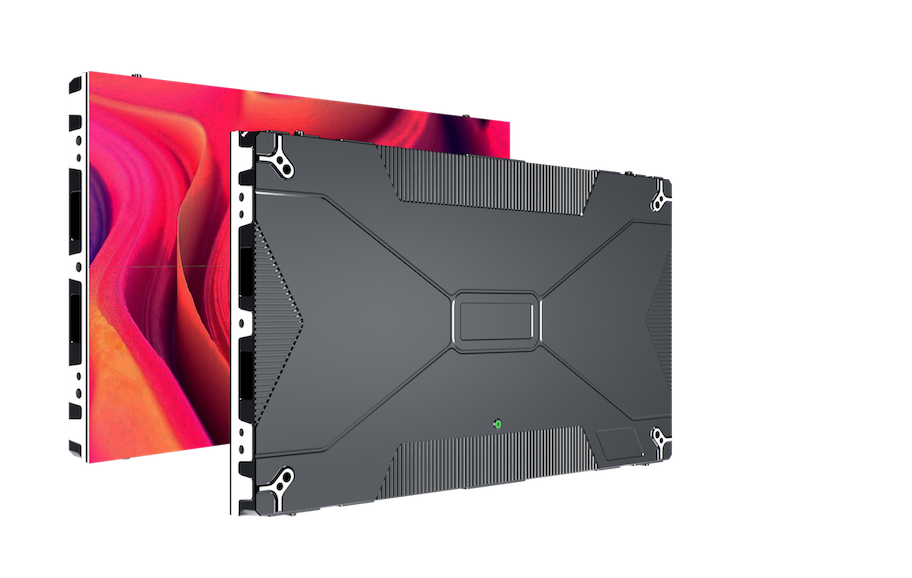

Thin & Light

Ultra thin & light panel design, 4.9KG weight and 39mm thickness only

16 : 9

16：9 cabinet size, easily to form 2K/4K/8K pixel resolution screen

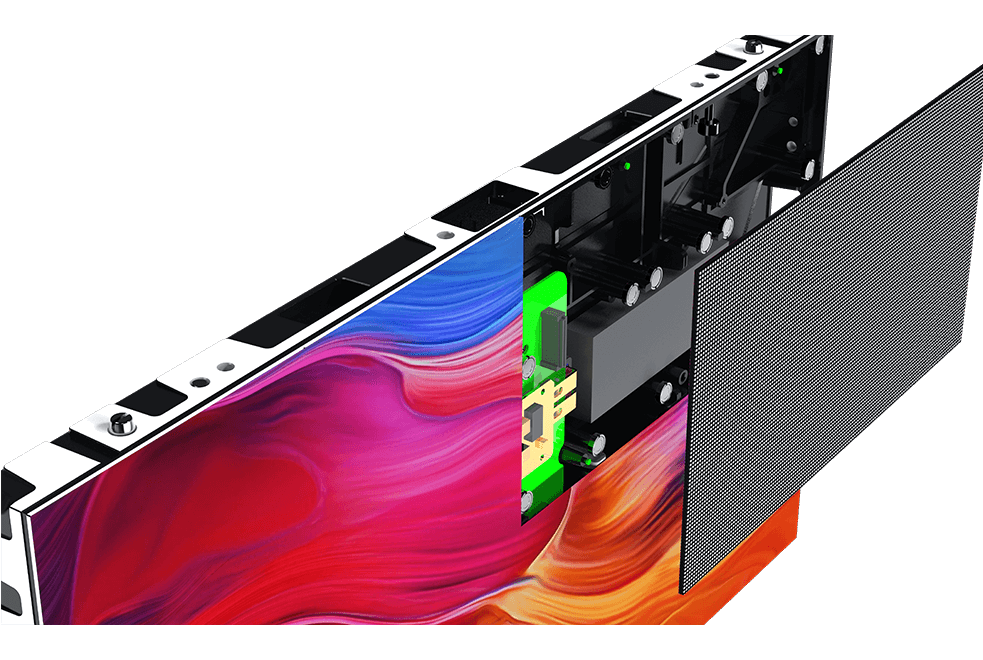

Full front installation

Easy full front installation and maintenance, support fast installation fit to the wall surface

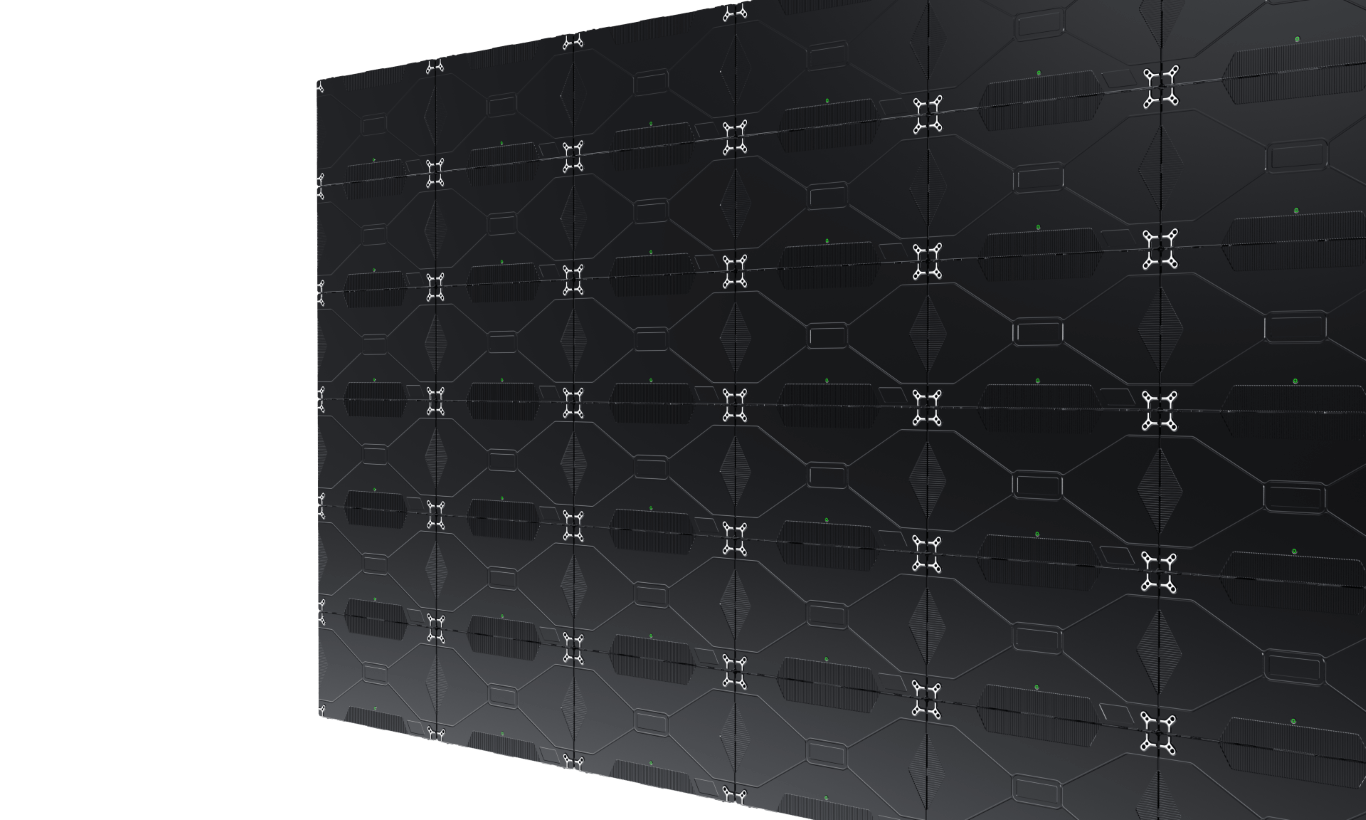

Panel stacking solution available

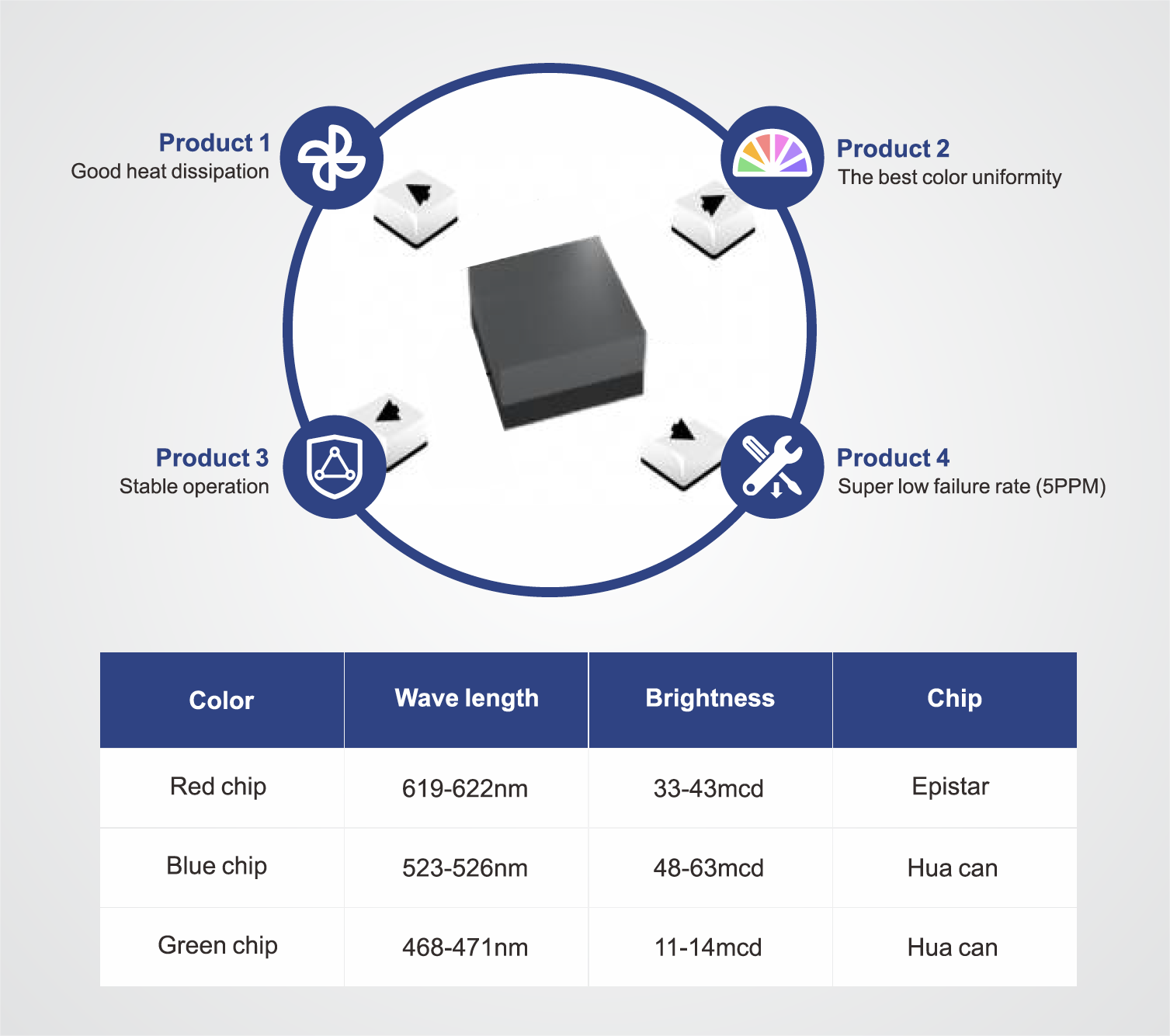

Highly reliable LED selection

Ensure products' best color uniformity,stable operation, super low failure rate and good heat dissipation

Perfect Flatness

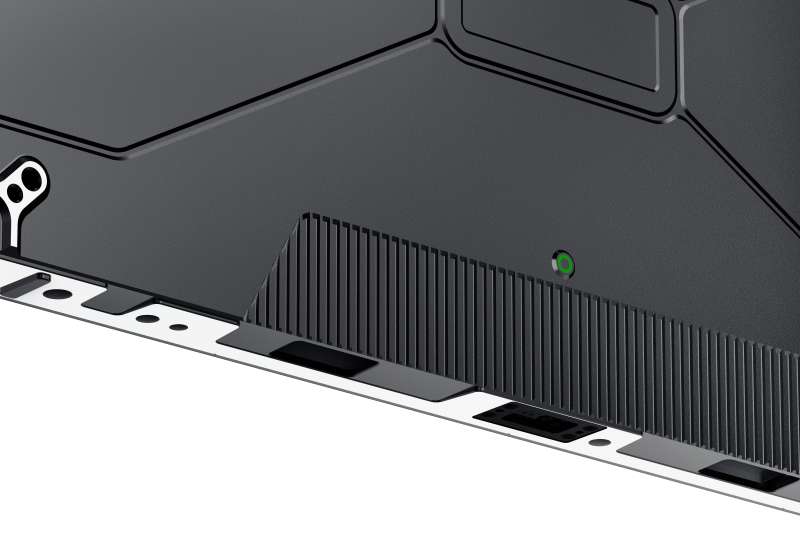

High precision floating connector adjustment with gold coating and board to board light unit connection design makes perfect flatness

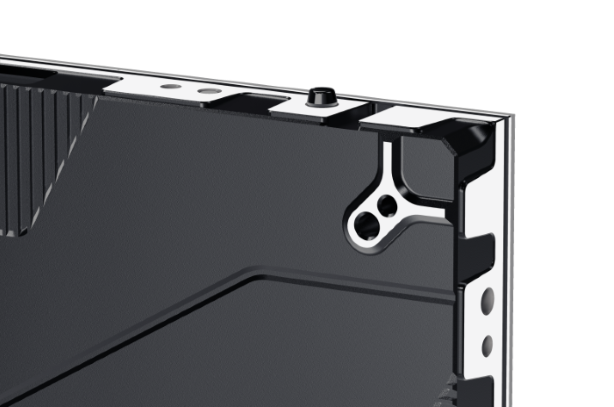

Chamfering Edge Design

Chamfering edge design to protect scratching hands

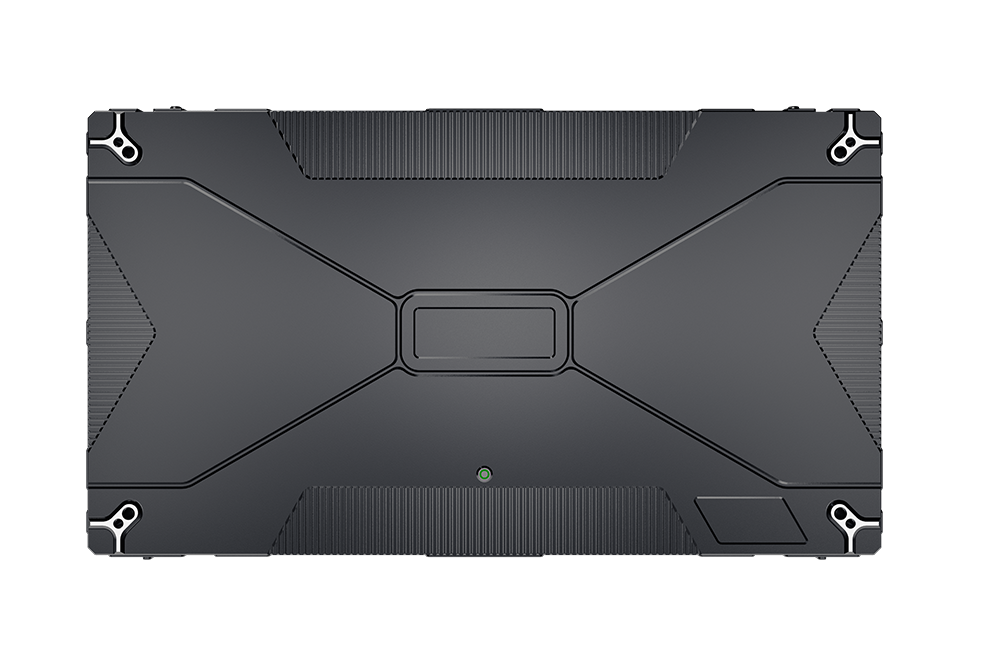

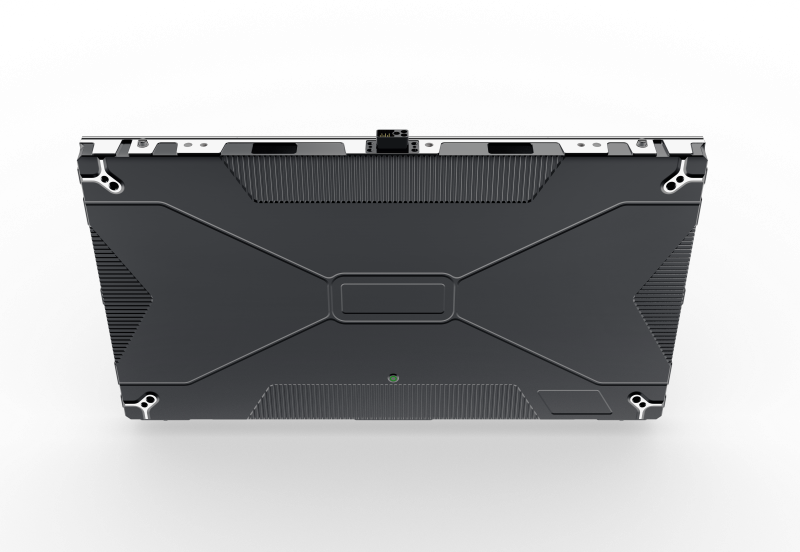

Neat Design

Neat design with clean and cable free

Product Parameters

Product Model	NAR plus 1.25	NAR plus 1.56	NAR plus 1.875	NAR plus 2.343
Pixel Pitch(mm)	1.25	1.562	1.875	2.343
Pixels per square meter（Pixels/m²）	640000	409600	284440	182040
Brightness(nits)	1000	1000	1000	1000
Grey scale	14~16	14~16	14~16	14-16
Refresh Rate(HZ)	3840	3840	3840	3840
Cabinet Size(mm)	600(w)x337.5(h)x39(t)	600(w)x337.5(h)x39(t)	600(w)x337.5(h)x39(t)	600(w)x337.5(h)x39(t)
Module Size(mm)	300x168.75	300x168.75	300x168.75	300x168.75
Cabinet Weight(KG)	4.9	4.9	4.9	4.9
Peak Power Consumption(W/m²)	636	406	573	340
Working Temperature/Humidity(°C，%)	0°C-55°C/10-93%RH	0°C-55°C/10-93%RH	0°C-55°C/10-93%RH	0°C-55°C/10-93%RH
